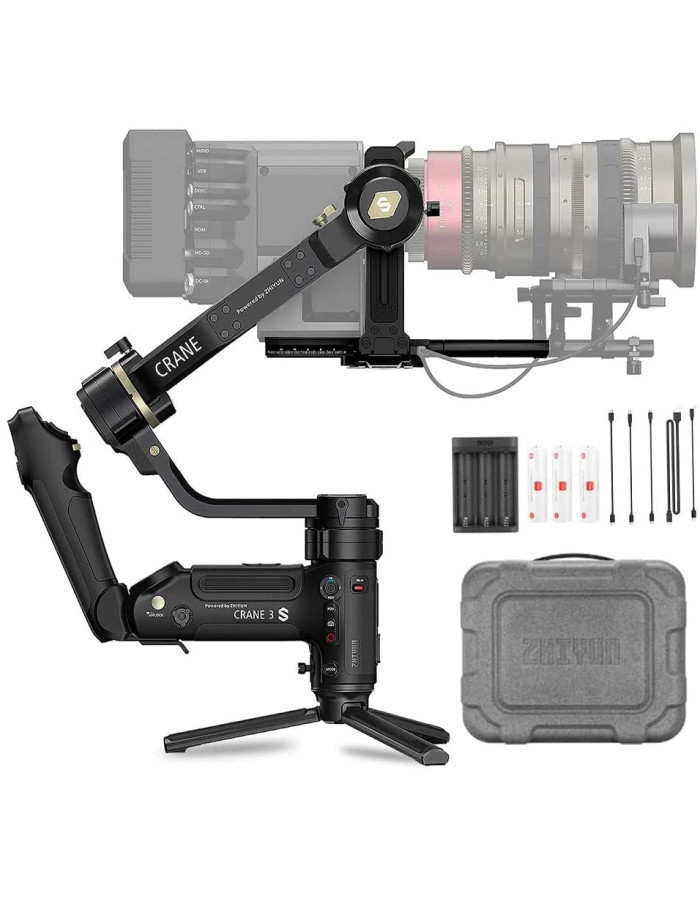

Zhiyun Crane 3S 3-Axis Handheld Gimbal Stabilizer for DSLR Cameras and Camcorder, 6.5kg Payload, Extendable Roll Axis, 12 Hours or Longer Continuous Uptime, DC-in, TransMount SmartSling Handle

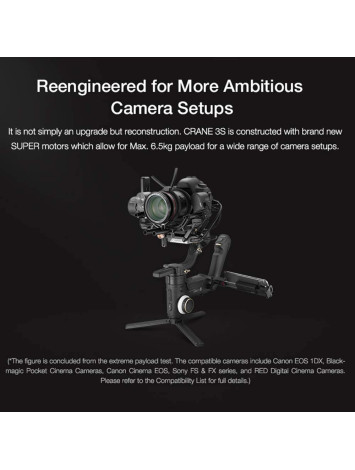

- CRANE 3S is constructed with brand new SUPER motors which allow for 14.3lbs payload for a wide range of camera setup including Canon EOS 1DX, Blackmagic Pocket Cinema Cameras, and even Canon Cinema EOS, Sony FS & FX series, and Red Digital Cinema Cameras.

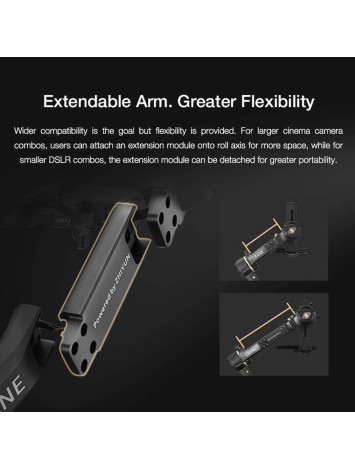

- Wider compatibility is the goal but flexibility is provided. For larger cinema camera combos, users can attach an extension module onto roll axis for more space, while for smaller DSLR combos, the extension module can be detached for greater portability.
- To complete challenging shooting tasks, CRANE 3S offers a versatile solution thanks to its cross-compatibility. The handle mods are easily separated and both provide multiple thread holes of different sizes to mount accessories. The modular design allows greater compatibility on CRANE 3S, like with motorized dolly, jib, cable cam, Easyrig, etc.

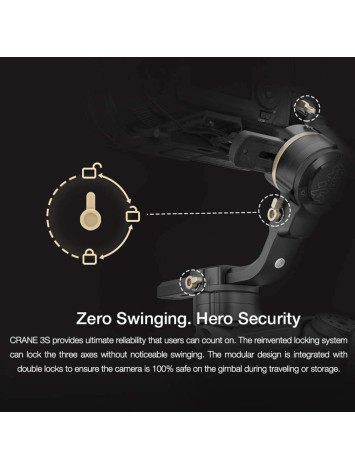

- CRANE 3S provides ultimate reliability that users can count on. The reinvented locking system can lock the three axes without noticeable swinging. The modular design is integrated with double locks to ensure the camera is 100% safe on the gimbal during traveling or storage.
Zhiyun Crane 3S:
Product Dimension: 346*98*344h
Operation Voltage: 9.8V-12.6V
Operation Current: 360ma-5400mA
Output Voltage: 5V
Tilt: 360(Unlimited Rotation)
Pan: 360%(Unlimited Rotation)
Battery Capacity: 2600mahThree18650ui- -lon Batteries)
Battery Runtime: 12h
Charging Time: 4h
Valid Payload: 600g-6500g
Bluetooth: Bluetooth 5.0
Camera Charging: Able to charge for 5V/ 1A cameras
Improved Zoom & Focus System (Sold Separately)
To meet the needs of cinematography, larger lens supports are added into the zoom & focus system. The focus wheel is equipped with a white board for marking a focus range. Zooming can be realized synchronously through SmartSling Handle.

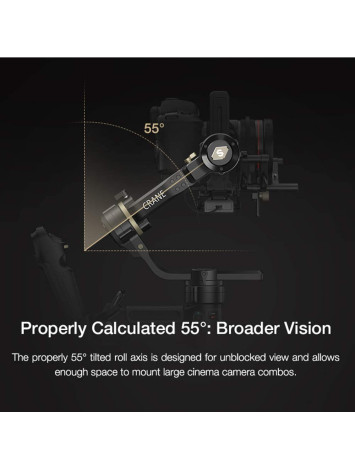

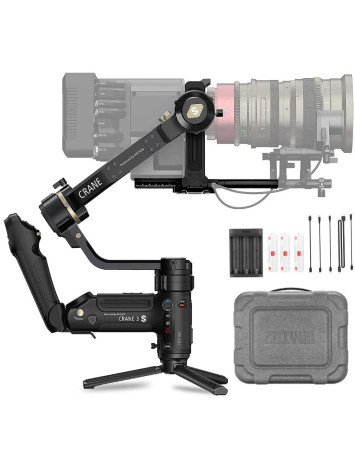

The CRANE 3S Handheld Stabilizer from Zhiyun is a powerful redesign of previous Zhiyun gimbals with the addition of detachable handle options, more powerful motors with a large 14.3 lb payload, an updated axis-locking system, external power input, and the ViaTouch 2.0 remote control system. The 55° angled roll axis allows you to fit your camera without blocking the view, and it is also modular so you can add an included extension arm to fit larger cameras.

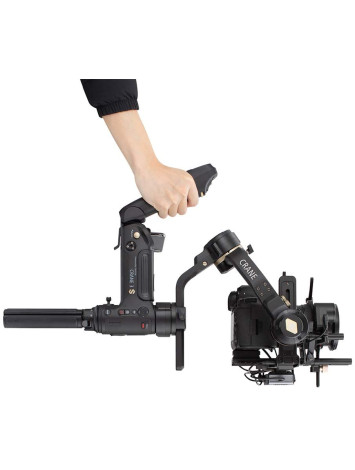

The CRANE 3S features an angled, ergonomic handle that provides two-handed operation for optimal stability. The handle enables you to seamlessly switch to underslung mode, whether with one or two hands, and achieve creative shots such as 330° roll shots as you move closer toward a subject. It also has numerous advanced features such as remote control of camera record/stop/shutter using the included cables, an improved zoom and focus system from its predecessor the CRANE 3 LAB, and compatibility with the separately available Transmount Image Transmission System for wireless video transmission. It can also accommodate a wide range of camera sizes by utilizing a separately available extension module to extend the horizontal arm.

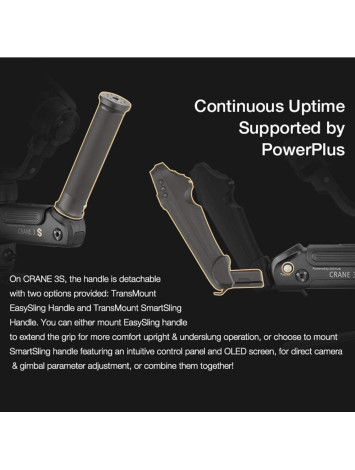

The 3S has two options for the detachable, angled handle. Included is the SmartSling that offers an ergonomic handle with an integrated joystick and control buttons, and the optional EasySling provides a simple, comfortable handgrip without controls. All the controls you need are provided at your fingertips at the top of the main handle along with an OLED status screen. The free Zhiyun iOS/Android app provides many of the same control functions, as well as special features such as panorama, focus time-lapse, motion time-lapse, long exposure time-lapse, camera settings, and more.

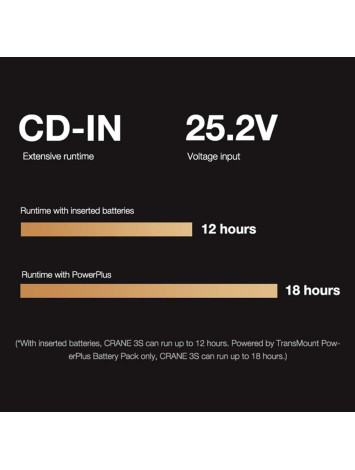

You can power the 3S using the three included batteries for up to 12 hours. However, if you need extra shooting time, a DC port allows you to plug in an optional battery pack such as the Transmount PowerPlus that contains six 18650 batteries, extending your shooting time to up to 18 hours. The CRANE 3S can be controlled using the updated ViaTouch 2.0 iOS or Android smartphone app via Bluetooth 5.0 for remote motion control and to manage the gimbal settings.
Nine accessory mounting threads are available around the gimbal to add a variety of Transmount or third-party accessories. Another major feature of the gimbal is a redesigned axis latch lock system consisting of a separate latch lock on each axis that provides solid locking in place without excess sway. This feature allows you to lock the individual axes to remember your balance positions when powering the gimbal off so you won't have to rebalance for each use.
Innovative Gimbal Design
Detachable, angled handle allows for two-handed operation; included SmartSling or optional EasySling handle options, and is compatible with a wide range of rigs and cameras
Featuring more powerful motors and a different gimbal design from the CRANE 3 LAB, the CRANE 3S achieves a greater load capacity of 14.3 lb
Crafted Latch Design
The CRANE 3S features a redesigned locking latch system that retains its balance position when turned off, and also locks more securely to prevent any excess joint sway
ViaTouch 2.0 Control System
The CRANE 3S ViaTouch 2.0 Control System consists of a variety of controls for framing shots, controlling certain gimbal movements, and adjusting camera settings, and it even supports SyncMotion, a motion control system using the physical movements of your remote control device
The CRANE 3S is compatible with optional Transmount products such as the Image Transmission System and other accessories that can attach to its numerous accessory threads
Zhiyun CRANE-3S Specs
|Number of Axes||3-Axis (Pitch, Roll, Yaw)|
|Rotation Range||Yaw (Pan): 360°
Pitch (Tilt): 360°
Roll: 330° (-255 to 75°)
|Load Capacity||1.32 to 14.3 lb / 0.6 to 6.49 kg|
|Ports||1 x USB Type-C (Power / Control) Input
1 x Proprietary (25.2 VDC Power) Input
|Wireless Protocol||Bluetooth 5.0|
|Battery Type||3 x 18650|
|Capacity (mAh)||2600 mAh|
|Battery Runtime||12 Hours|
|Voltage||9.8 to 11.1 VDC|
|Operating Voltage||9.8 to 25.2 VDC|
|Operating Current||360 to 5400 mA (Maximum)|
|Operating Temperature||14 to 113°F / -10 to 45°C|
|Mounting||9 x 1/4"-20 Female|
|Dimensions||13.62 x 13.54 x 3.86" / 346 x 344 x 98 mm|
|Weight||5.45 lb / 2.47 kg|
